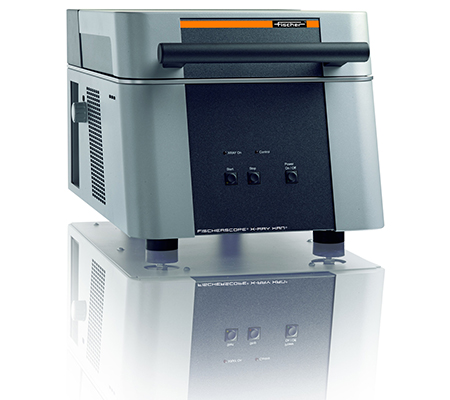

Electronic Gold Testing Machine for Hallmarking Centres : XAN-FD

Gold testing machine in hallmarking centres: XAN-FD is a fast and non-destructive coating thickness measurement and material analysis. These are compact in size and widely applicable as an energy-dispersive X-ray fluorescence measuring instrument.

Our machines are extensively used for non-destructive thickness measurements and material analysis. These are fitted with electrically changeable apertures and primary filters and modern silicon PIN detector for excellent detection sensitivity and high accuracy. These can be used for coating systems as well as solid and liquid Samples can be analyzed standard-free. Besides, these can easily measure up to 24 elements in a Range from aluminum (13) to uranium (92) simultaneously.

Our machines are acclaimed for their long term stability, excellent accuracy, long term stability and ergonomic design. These are very easy to operate and acclaimed for fast calculation and quick data presentation. These are well suited for measuring and analyzing thin coatings, even with very complex compositions or small concentrations.

ask for price
Gold Testing Machine : XAN-FD

We provide user friendly bench-top instruments. These are available in two different range including XAN-FD and XAN 152 and these differ in support stage and the housing size

These are fitted with the X-ray source and semiconductor detector assembly is located in the XAN 120 lower chamber, so that the measuring direction is from underneath the sample.

These are ideal to measure range of up to 22 mm. straightened with the integrated video-microscope with crosshairs and up to 184x zoom factor simplifies sample placement, these devices are very easy to install, operate and maintain

These are operated through powerful WinFTM® 2 FISCHERSCOPE® X-RAY XAN®-FD, XAN® 152 -FD, XAN® XAN® 152 software, which make these very user friendly and easy to use.

Typical areas of application are:

Measurement of functional coatings in the electronics and semiconductor industries

Analysis of alloys in the jewellery and watch industries

Research in universities and in the industries

General Specification

Intended use:Energy dispersive X-ray fluorescence measuring instrument (EDXRF)

to determine thin coatings and alloys

Element range:Aluminum (13) to Uranium (92), up to 24 elements simultaneously

Design:Bench-top unit with hood opening upwards

Measuring direction:Bottom-up method

X-Ray Source

X-ray tube:Micro focus tungsten tube with beryllium window

High voltage:Three steps 10 kV, 30 kV, 50 kV

Aperture (Collimator):4x changeable: Ø 0.2 mm, Ø 0.6 mm, Ø 1 mm, Ø 2 mm, others on request

Primary filter:3x changeable: Nickel, Aluminum, free, others on request

Measurement spot:Depending on the measuring distance and on the aperture in use; the actual

measurement spot size is shown in the video image.Smallest measurement

spot: approx. Ø 0.3 mm

Measurement distance:0 … 20 mm (0 … 0.8 in) Distance compensation with patented DCM method

for simplified measurements at varying distances. For particular applications

an additional calibration might be necessary.

X-Ray Detection

X-ray detector:Silicon PIN detector with peltier cooling

Resolution (fwhm for Mn-Kα):≤ 180 eV (fwhm at Mn-Kα)

Sample orientation

Video microscope:High-resolution CCD color camera for optical monitoring of the measurement

location along the primary beam axis,Crosshairs with a calibrated scale (ruler)

and spot-indicator,Adjustable LED illumination of the measurement location

Zoom factor:34x ... 184x (optical: 34x … 46x; digital: 1x, 2x, 3x, 4x)

Sample support stage


DesignFixed sample supportManual X/Y-stage

Maximum travel X/Y50 x 50 mm

Usable sample placement area318 x 327 mm250 x 280 mm

Max. sample mass2 kg2 kg

Max. sample height86 mm248 mm

Electrical Data

Power supplyAC 115 V or AC 230 V 50 / 60 Hz

Power consumptionMax. 120 W ( measuring head without PC )

Protection classIP40



External dimensions
Width x depth x height [mm]
380 x 576 x 340380 x 576 x 504

Interior dimensionsTotal: 318 x 307 x 29 – 86Total: 318 x 364 x 0 – 248


Width x depth x height [mm]
Without slant area: 318 x 203 x 86Without slant area: 318 x 327 x 248

WeightApprox. 42 kgApprox. 42 kg

Environmental Conditions

Temperature: Operation10 °C – 40 °C / 50 °F – 104 °F

Temperature:0 °C – 50 °C / 32 °F – 122 °F


Humidity of ambient air≤ 95 %, non-condensing

Evaluation Unit

ComputerWindows® PC with extension cards

SoftwareStandard: Fischer WinFTM® BASIC + PDM®

Optional: Fischer WinFTM® SUPER


CE-KonformitätEN 61010

X-Ray standardsDIN ISO 3497 and ASTM B 568

ApprovalIndividual acceptance inspection as a fu lly protected instrument

according to the German regulations "Deutsche Röntgenverordnung-RöV".
