Fischer Gold Testing Machines

Cost-effective and compact X-Ray Fluorescence Measuring Instrument (XRF) for fast and non-destructive Analysis of Gold and Silver Alloys.

Fischer gold testing machines are available in 4 models.

Goldscope SD 510.

Goldscope SD 515.

Goldscope SD 520.

Goldscope SD 550.

Goldscope SD 510

Goldscope SD 510 is a X-Ray Fluorescence Measuring gold testing instrument optimized for fast, cost-effective and non-destructive Analysis of jewellery, coins and precious metals for jewellery, retail store, banks and gold exchange.

Goldscope SD 510 can measure all the element from Aluminium to Uranium including the detection of PGM group elements such as Iridium, Ruthinuem, Osmium.

It comes with an advanced SI - PIN detector for high-precision analysis of precious metals.

ask for price
Goldscope SD 510
Additional Information:

Item Code: SD510

Delivery Time: 3-4 Weeks

General Specification

Minimum Order Quantity : 1 Unit


Usage/Application : Industrial


Model Number/Name : SD 510


Analysis Elements : GUsed,Silver,Copper


Automation Grade : Automatic


Power Type : Electric


Operation Mode : Automatic


Accuracy : 0.01


Dimension : 403 x 588 x 365 mm


Brand : Fischer


Power Supply : AC 230 V 50 / 60 Hz

Get An Instant Quote

Goldscope SD 515

GOLDSCOPE SD 515 is uniquely designed and developed as an entry-level X-ray fluorescence measuring instrument which is used for fast and non-destructive analysis and coating thickness measurement of gold, silver alloys. It is also applicable while conducting non-destructive analysis of jewellery, coins and precious metals.

These are also useful for the analysis of precious metals and their alloys in composition and coating thickness and up to 24 elements in the range of chlorine (17) to uranium (92) can be determined simultaneously.

Our gold testing machine in assaying centres: XAN 21 is acclaimed for outstanding accuracy and long-term stability. These are extensively acknowledged for their time saving property and longer service life. These are fitted with the modern silicon PIN detector which achieves high accuracy and good detection sensitivity.

ask for price
Goldscope SD 515
Design

These are widely known as a user-friendly bench-top instrument with quick and easy specimen positioning.

These are designed in such a way that its X-ray source and semiconductor detector assembly is located in the instrument‘s lower chamber, which ensure that the measuring direction is from underneath the sample, which is supported by a transparent window.

These provide precise measuring spot adjustment as these are fitted with the integrated video-microscope with zoom and crosshairs simplifies sample place.

Our machines are directed through powerful and user-friendly WinFTM® software for the entire operation and evaluation of measurements as well as the clear presentation.

Our devices are Fully protected instrument with type approval according to the German regulations „Deutsche Röntgenverordnung-röv“ and designed as per DIN ISO 3497 and ASTM B 568 standard.

Typical fields of applications

Jewellery, precious metals and dental alloys

Yellow and white gold

Platinum and silver

Rhodium

Alloys and coatings

Multi layer coatingsx

Additional Information:

Item Code: SD515

Delivery Time: 3-4 Weeks

General Specification

Intended use:Energy dispersive X-ray fluorescence measuring instrument (EDXRF) to

analyze precious metals and their alloys in composition and coating thickness.


Element range:Chlorine (17) to Uranium (92) – up to 24 elements simultaneously


Repeatability:≤ 0.5 ‰ for gold, measurement time 60 sec


Design:Bench-top unit with hood opening upwards


Measuring direction:Bottom-up


X-Ray Source

X-ray tubeMicro focus tungsten tube with beryllium window


High voltageThree steps: 30 kV, 40 kV, 50 kV


Aperture (Collimator):Ø 1 mm (39 mils), optional Ø 2 mm (79 mils) or Ø 0.6 mm (23.6 mils)


Measurement spot:Aperture diameter plus 200 μm (8 mils), at measurement distance MD = 0mm


X-Ray Detection

X-ray detectorSilicon Drift Detector (SDD), peltier-cooled


Resolution (fwhm for Mn-Kα)≤ 160 eV


Measurement distance:0 … 20 mm (0 … 0.8 in) Distance compensation with patented DCM method

for simplified measurements at varying distances. For particular applications

an additional calibration might be necessary.


Sample Alignment

Sample positioningManually


Video microscopeHigh-resolution CCD color camera for optical monitoring of the measurement

location along the primary beam axis,Crosshairs with a calibrated scale (ruler)

and spot-indicator,Adjustable LED illumination of the measurement location


Zoom factorDigital 1x, 2x, 3x, 4x


Get An Instant Quote

Goldscope SD 515

GOLDSCOPE SD 515 is uniquely designed and developed as an entry-level X-ray fluorescence measuring instrument which is used for fast and non-destructive analysis and coating thickness measurement of gold, silver alloys. It is also applicable while conducting non-destructive analysis of jewellery, coins and precious metals.

These are also useful for the analysis of precious metals and their alloys in composition and coating thickness and up to 24 elements in the range of chlorine (17) to uranium (92) can be determined simultaneously.

Our gold testing machine in assaying centres: XAN 21 is acclaimed for outstanding accuracy and long-term stability. These are extensively acknowledged for their time saving property and longer service life. These are fitted with the modern silicon PIN detector which achieves high accuracy and good detection sensitivity.

ask for price
Goldscope SD 515
Design

These are widely known as a user-friendly bench-top instrument with quick and easy specimen positioning.

These are designed in such a way that its X-ray source and semiconductor detector assembly is located in the instrument‘s lower chamber, which ensure that the measuring direction is from underneath the sample, which is supported by a transparent window.

These provide precise measuring spot adjustment as these are fitted with the integrated video-microscope with zoom and crosshairs simplifies sample place.

Our machines are directed through powerful and user-friendly WinFTM® software for the entire operation and evaluation of measurements as well as the clear presentation.

Our devices are Fully protected instrument with type approval according to the German regulations „Deutsche Röntgenverordnung-röv“ and designed as per DIN ISO 3497 and ASTM B 568 standard.

Typical fields of applications

Jewellery, precious metals and dental alloys

Yellow and white gold

Platinum and silver

Rhodium

Alloys and coatings

Multi layer coatingsx

Additional Information:

Item Code: SD515

Delivery Time: 3-4 Weeks

General Specification

Intended use:Energy dispersive X-ray fluorescence measuring instrument (EDXRF) to

analyze precious metals and their alloys in composition and coating thickness.


Element range:Chlorine (17) to Uranium (92) – up to 24 elements simultaneously


Repeatability:≤ 0.5 ‰ for gold, measurement time 60 sec


Design:Bench-top unit with hood opening upwards


Measuring direction:Bottom-up


X-Ray Source

X-ray tubeMicro focus tungsten tube with beryllium window


High voltageThree steps: 30 kV, 40 kV, 50 kV


Aperture (Collimator):Ø 1 mm (39 mils), optional Ø 2 mm (79 mils) or Ø 0.6 mm (23.6 mils)


Measurement spot:Aperture diameter plus 200 μm (8 mils), at measurement distance MD = 0mm


X-Ray Detection

X-ray detectorSilicon Drift Detector (SDD), peltier-cooled


Resolution (fwhm for Mn-Kα)≤ 160 eV


Measurement distance:0 … 20 mm (0 … 0.8 in) Distance compensation with patented DCM method

for simplified measurements at varying distances. For particular applications

an additional calibration might be necessary.


Sample Alignment

Sample positioningManually


Video microscopeHigh-resolution CCD color camera for optical monitoring of the measurement

location along the primary beam axis,Crosshairs with a calibrated scale (ruler)

and spot-indicator,Adjustable LED illumination of the measurement location


Zoom factorDigital 1x, 2x, 3x, 4x


Get An Instant Quote

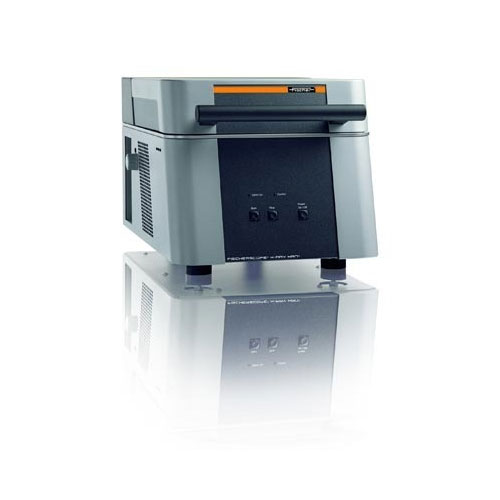

Goldscope SD 520

Goldscope SD 520 is uniquely designed and developed as an entry-level X-ray fluorescence measuring instrument which is used for fast and non-destructive analysis and coating thickness measurement of gold, silver alloys. It is also applicable while conducting non-destructive analysis of jewellery, coins and precious metals.

These are also useful for the analysis of precious metals and their alloys in composition and coating thickness and up to 24 elements in the range of chlorine (17) to uranium (92) can be determined simultaneously.

Our gold testing machine in assaying centres: XAN 21 is acclaimed for outstanding accuracy and long-term stability. These are extensively acknowledged for their time saving property and longer service life. These are fitted with the modern silicon PIN detector which achieves high accuracy and good detection sensitivity.

ask for price
Goldscope SD 520
Design

These are widely known as a user-friendly bench-top instrument with quick and easy specimen positioning.

These are designed in such a way that its X-ray source and semiconductor detector assembly is located in the instrument‘s lower chamber, which ensure that the measuring direction is from underneath the sample, which is supported by a transparent window.

These provide precise measuring spot adjustment as these are fitted with the integrated video-microscope with zoom and crosshairs simplifies sample place.

Our machines are directed through powerful and user-friendly WinFTM® software for the entire operation and evaluation of measurements as well as the clear presentation.

Our devices are Fully protected instrument with type approval according to the German regulations „Deutsche Röntgenverordnung-röv“ and designed as per DIN ISO 3497 and ASTM B 568 standard.

Typical fields of applications

Jewellery, precious metals and dental alloys

Yellow and white gold

Platinum and silver

Rhodium

Alloys and coatings

Multi layer coatingsx

Additional Information:

Item Code: SD520

Delivery Time: 3-4 Weeks

General Specification

Intended use:Energy dispersive X-ray fluorescence measuring instrument (EDXRF) to

analyze precious metals and their alloys in composition and coating thickness.


Element range:Chlorine (17) to Uranium (92) – up to 24 elements simultaneously


Repeatability:≤ 0.5 ‰ for gold, measurement time 60 sec


Design:Bench-top unit with hood opening upwards


Measuring direction:Bottom-up


X-Ray Source

X-ray tubeMicro focus tungsten tube with beryllium window


High voltageThree steps: 30 kV, 40 kV, 50 kV


Aperture (Collimator):Ø 1 mm (39 mils), optional Ø 2 mm (79 mils) or Ø 0.6 mm (23.6 mils)


Measurement spot:Aperture diameter plus 200 μm (8 mils), at measurement distance MD = 0mm


X-Ray Detection

X-ray detectorSilicon Drift Detector (SDD), peltier-cooled


Resolution (fwhm for Mn-Kα)≤ 160 eV


Measurement distance:0 … 20 mm (0 … 0.8 in) Distance compensation with patented DCM method

for simplified measurements at varying distances. For particular applications

an additional calibration might be necessary.


Sample Alignment

Sample positioningManually


Video microscopeHigh-resolution CCD color camera for optical monitoring of the measurement

location along the primary beam axis,Crosshairs with a calibrated scale (ruler)

and spot-indicator,Adjustable LED illumination of the measurement location


Zoom factorDigital 1x, 2x, 3x, 4x


Get An Instant Quote

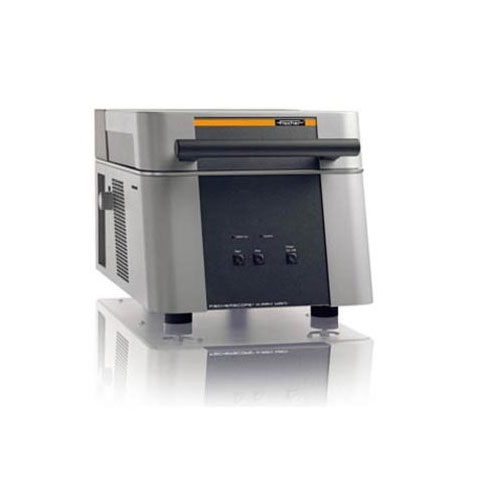

Goldscope SD 550

The high-end measurement system GOLDSCOPE SD 550 was developed specifically for high-precision analysis of precious metals as required for Hallmarking and assay offices. These are high performance X-ray fluorescence measuring instruments widely used for fast and non-destructive material analysis and coating thickness measurement. Compact sized these devices are acclaimed for high performance, longer service life and accurate measurement.

GOLDSCOPE SD 550 is on of the highest selling gold testing machine extensively being used in hallmarking and testing centre. Along with gold, silver and platinum it can also detect PGM group elements such as Iridium, Ruthenium and Osmium.

These are user friendly devices acclaimed for compact size and consistent performance.Our devices are acclaimed for their quick and easy sample positioning and consistent performance.

These are fitted with the X-ray source and semiconductor detector which are further located in the instrument‘s lower chamber.

Engineered under the firm direction of experienced quality controllers, these are fitted with the integrated video-microscope with zoom and crosshairs simplifies sample placement which further allows precise measuring spot adjustment and ensure clear presentation of measurement data on a PC with the help of powerful and user-friendly Winftm® software.

These are designed and developed in accordance with German regulations "Deutsche Röntgenverordnung-röv“.

ask for price
Goldscope SD 550
Design

These are widely known as a user-friendly bench-top instrument with quick and easy specimen positioning.

These are designed in such a way that its X-ray source and semiconductor detector assembly is located in the instrument‘s lower chamber, which ensure that the measuring direction is from underneath the sample, which is supported by a transparent window.

These provide precise measuring spot adjustment as these are fitted with the integrated video-microscope with zoom and crosshairs simplifies sample place.

Our machines are directed through powerful and user-friendly WinFTM® software for the entire operation and evaluation of measurements as well as the clear presentation.

Our devices are Fully protected instrument with type approval according to the German regulations „Deutsche Röntgenverordnung-röv“ and designed as per DIN ISO 3497 and ASTM B 568 standard.

Typical fields of applications

Jewellery, precious metals and dental alloys

Yellow and white gold

Platinum and silver

Rhodium

Alloys and coatings

Multi layer coatingsx

Additional Information:

Item Code: SD550

Delivery Time: 3-4 Weeks

General Specification

Intended use:Energy dispersive X-ray fluorescence measuring instrument (EDXRF) to

analyze precious metals and their alloys in composition and coating thickness.


Element range:Chlorine (17) to Uranium (92) – up to 24 elements simultaneously


Repeatability:≤ 0.5 ‰ for gold, measurement time 60 sec


Design:Bench-top unit with hood opening upwards


Measuring direction:Bottom-up


X-Ray Source

X-ray tubeMicro focus tungsten tube with beryllium window


High voltageThree steps: 30 kV, 40 kV, 50 kV


Aperture (Collimator):Ø 1 mm (39 mils), optional Ø 2 mm (79 mils) or Ø 0.6 mm (23.6 mils)


Measurement spot:Aperture diameter plus 200 μm (8 mils), at measurement distance MD = 0mm


X-Ray Detection

X-ray detectorSilicon Drift Detector (SDD), peltier-cooled


Resolution (fwhm for Mn-Kα)≤ 160 eV


Measurement distance:0 … 20 mm (0 … 0.8 in) Distance compensation with patented DCM method

for simplified measurements at varying distances. For particular applications

an additional calibration might be necessary.


Sample Alignment

Sample positioningManually


Video microscopeHigh-resolution CCD color camera for optical monitoring of the measurement

location along the primary beam axis,Crosshairs with a calibrated scale (ruler)

and spot-indicator,Adjustable LED illumination of the measurement location


Zoom factorDigital 1x, 2x, 3x, 4x


Get An Instant Quote
