Goldscope

"Designed and developed in accordance with international industrial standards for Retail Jewellery Stores , Goldscope is basically a type of an X-ray fluorescence measuring instrument with SI- PIN Detector optimised for non-destructive analysis of the gold and silver alloys along with detection of Powder such as Iridium, Ruthenium . It can easily analyse the Gold and indicate values in carat or weight%. Goldscope is a Cost-effective and compact entry-level X-Ray Fluorescence (XRF) Measuring Instrument for fast and non-destructive Analysis of Gold and Silver Alloys"

ask for price

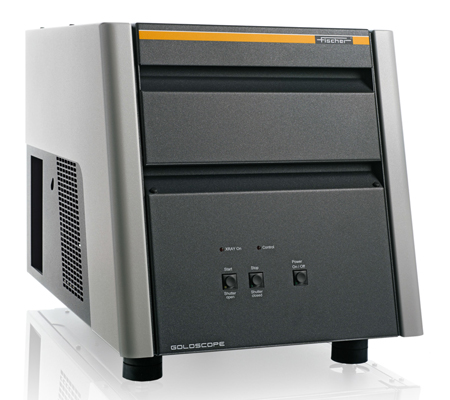

Goldscope

Software Used : WinFTM®
Design Standards : DIN ISO 3497 and ASTM B 568

Design

The unit is compactly designed as user-friendly bench-top instrument. It is light in weight and require less space.

The door of the instrument opens in the front not upwards thus saving more space.

The lower chamber possess detector assembly and X-ray source which helps in easy positioning of sample in the instrument.

The measuring direction under the sampling tray is supported by a transparent window

Its precise measuring spot adjustment is the result of the integrated video-microscope with zoom and cross-hairs, which simplifies sample placement.

The system is operated through powerful and user-friendly WinFTM® software for the entire operation and evaluation of measurements as well as the clear presentation of data using PC.

Typical fields of applications

Retail Jewellery Store

Banks

Gold Exchange

General Specification

Intended use: Energy dispersive X-ray measuring instrument (EDXRF) to analyze precious metals
Repeatability: ≤ 1 ‰ for gold, measurement time 60 sec
Design: Goldscope: Bench top unit with towards the front opening hood.
Measuring direction: Bottom up

Electrical Data

Power supply and consumption AC 115 or 230 V, 50/60 Hz, max. 120 W without evaluation PC
Protection class IP40

Environmental Conditions

Operating temperature 10 °C – 45 °C / 50 °F – 113 °F
Storage/Transport temperature -20 °C – 80 °C / -4 °F – 176 °F
Relative humidity ≤ 95 %

Sample Alignment

Sample positioning Manually
Video microscope High-resolution CCD colour camera for optical monitoring of the measurement location along the primary beam axis, Crosshairs with a calibrated scale (ruler) and spot-indicator, Adjustable LED illumination
Zoom factor Digital 1x, 2x, 3x, 4x

Evaluation Unit

Computer Windows®-PC
Software WinFTM® optimized for GOLDSCOPE Including Gold Setup, Jewelry Setup and Fashion Jewelry Setup

Standards

CE approval EN 61010
X-Ray standards DIN ISO 3497 and ASTM B 568
Approval Individual acceptance inspection as a fully protected instrument according to the German regulations "Deutsche Röntgenverordnung - RöV".

Sample Stage

Design Fixed sample support
Max. sample weight [kg/lb] 13/29
Usable sample placement area [mm/in] 305 x 490/ 12 x 19.3
Max. sample height [mm/in] 130/5.1

Dimensions

External dimensions 405 x 588 x 426/
Width x depth x height [mm/in] 16 x 23 x 17
Weight [kg/lb] approx. 45/99

X-Ray Source

X-ray tube Tungsten tube, thermally stabilized
High voltage, three steps [kV] 30, 40, 50
Primary filter, Material and thickness [μm/mils] none
Aperture (Collimator) fixed
Ø [mm/mils] 1.0/39

X-Ray Detection

Detector type Silicon PIN detector peltier-cooled
Resolution fwhm for Mn-Kα [eV] ≤ 180
Element range S (16) to U (92)
Measuring distance [mm/in] 0 – 25/0 – 1, Distance compensation with patented DCM method for
simplified measurements at varying distances. For particular applications or for higher demands on accuracy an additional calibration might be necessary.

Order

Order number 605-684
incl. Gold Setup, Jewelry Setup and Fashion Jewelry Setup
Factory Calibration 605-692
Special GOLDSCOPE product modification and technical consultation on request
